2013-05-12

JSvision Automatic Pinsetter Machine

Most Advance Pinsetter Machine in the Industry
With  perfect computer design, introducing of ultra strong special materials, and standardization of parts, the JSvision Pinsetter maximizes reliability and durability under strict and precise quality management.

By simplifying the structure of the machine and reducing the number of parts, the JSvision pinsetter minimizese the chance of errors occurring.
Experience the remarkable effects of reduced maintenance and management costs!

The JSvision Pinsetter is proud to have the fastest pin setting speed in the industry and comes with various exercise game modes.

In particular, the JSvision Pinsetter is the first machines in the industry to use a PLC(Programable Logic Controller) system in its control box, the core part that controlls the operation of the pinsetter, rather than the existing PCB(Printed Circuit Board) system. This eliminates the trouble that pinsetters with electonic circuits experience and adds various advanced functions.
Program functions can be added or changed quickly on site and it is easy to upgrade.




 Safe and Convenient Maintenance System
 It has a footstep on the top of the machine and passages between the machines so that the machine operator can move conveniently when checking or repairing the machine. Protective safety nets are also attached for the security of the machine operator.
The control units on the front and rear of the machine factilitates prompt action in an emergency and maintenance in case any malfunctions occur. In addition, an emergency stop switch is installed on the power-dirving parts, and safety covers are attached on the front of the machine for the safety of the machine operator. A Universal Box positioned on top of the machine display for safe and convenient machine control. It shows the status of operation and any problems.



 Trouble Indicator
A trouble indicator is located on the rear of the machine. A masking lamp on the masking units blink at the time the machine trouble so that machine trouble can be checked promptly and easily anywhere.



Independent Operation Control Function and Frame Counter
If the machine is stoppd by using the emergeny switch on the rear of the machine, the whole pinsetter does not stop, only the rear motor, so that it is possible to repair the rear of machine while bowlers still enjoy playing. In addition, since the operation of the accelerator and the ball lift are independently controlled, the problem where the ball does not return but remains on the ball track cannot occur.
Systematic machine management is possible with a frame counter built in the machine, which indicates the number of operatons.




Prompt and Profitable Operation System
The JSvision Pinsetter has adopted the machine pin distribution system by Elevator Wheel. The pin from the elevator wheel moves to the shuttle pin station through the distributor in the pin-setting preparation system, which results in a shortening of the pin-setting time and an increase in the total number of games played.
In addtion, this system minimizes machine problems and reduces the maintenance and management costs by decreasing the number of perishable parts to 100 types.

Prompt Pin-Setting
Each pinsetter mechanism, including the table, sweeper and pin tongs, operates consecutively each other without pausing, resulting in fast and smooth pin-setting.

Pin Jam Prevention Function
The rear motor operates for an additional one minute after game is finished, even if the machine is switched off. It prepares all the pins remaining for the pin-setting ready state, whitch prevents pin-jam, which may occur when machines are restarted.

Horizontal Ball return System
The horizontal accelerated ball return system has been adopted to allow quick ball return and further increase the tatal number of games played.

Electronic Ball Return System
Perfect detection is possible, since a high-sensitivity sensor is used in the process where the ball is entered into the accelerator. In addition, it substantially reduces the chance that the ball will be trapped and not entered into the accelerator by attaching a special electronic device.

Out-of-Range Function
Even though the pins are out-of-range, players can enjoy uninterrupted games without any machne errors.



Various Advanced Functions
Second Ball Cycle
This function is for intensive practice of throwing strikes, as it continuously set up 10 pins whenever a ball is thrown.

First Ball Cycle
This function is for intensive practice of hitting spares, as it continues placing the remaining pins until all of them are knocked over.

Shadow Bowling
This function is practicing throwing a ball or correcting the posture, as it returns the ball without setting the pins

Sef-Diagnostics and Indication Function
Since the machine automatically diagnoses problems and displays them as code, it is possible to identify any problems and take necessary measures without delay.

Auto Off Function
If there is no balls thrown for a certain period of time, the pin-drum, pin-distributor and ball return functions will be automatically suspended. This reduce the wear of machine parts and increases the service life of the machine, and, at the same time, reduces unnecessary usage of electricity. Maintenance and management costs will be reduced. When a bowler throws a ball, it automatically resumes operation.

Auto Shutdown Function
This cunction prevents damage of the machine itself, including the pin and balls, when ordinary operation of machine is difficult as a pin is caught in the ball return device or setting table.

Self Voltage Regulator
The voltage self-regulator built in each pinsetter provides constant voltage to the pinsetter equipment, even when the input voltage fluctuates severely, and maintains perfect operation of the machine without interruption or malfunctions. In addition, it is not necessary to install a separae AVR system.

Quick Cycle Function
When a ball falls into the gutter without hitting any pins, or when a bowler scores a strike, the machine activates the quick cycle function to directly go to the next stage without any manual operation, decreasing te machine operation time and increasing the number of games played.

Self Test Function
It automatically tests the function of each machine parts. Trial operation is programed to perform after the machine is installed or repaired, removing the need to throw a ball for the purpose of testing.

Electric Circuit Protection
Electric circuit are protected from all shocks and overloads, which aids perfect pinsetter control without malfunction.

Memory Function
It memorizes the currect status of the machine at all times, even after a power failure or maintenance has taken place.




Click the below YouTub Address to see the video of JS Vision Automatic Pinsetter Machine !



2013-05-11

JSvision Synthetic Bowling Lane


SPIRIT OF TOP QUALITY
Many years of "hands-on" experience quarantees a reputation for innovative and high quality with superior design, manufacturing and warranty to others. Eliminated all the negative features commonly found with other existing synthetic lanes like bending, delamination, fade out of the lane pattern after few years of use.



REFINED DESIGN

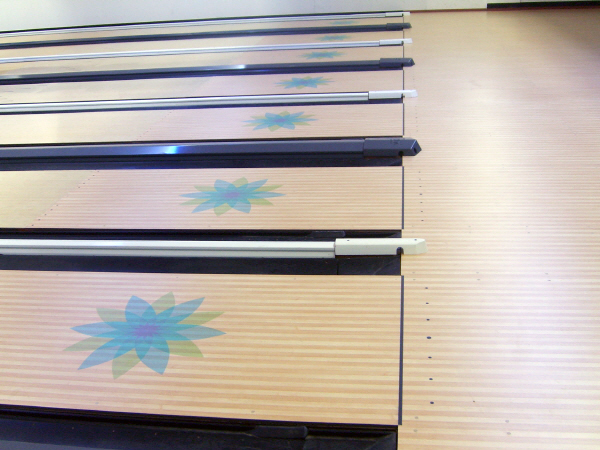

The elaboratevly refined design of genuine maple wood with long lasting durability will not only creat happier customer but improve profitability for propreitors. As an option, High quality of JS International Printing technology provides customized graphic desigh such as the logo of the bowling center, any picture etc on any area of the lane surface



HIGH SCORE AND NICE FEELING
A brushed surface will result in superb conditioner adhesion and consistent high scoring for enhancing bowler's pleasant and approval. Flatter, smoother, more evenly finished lanes for consistent and reliable ball roll and action. JS Vision Lane holds oil patterns almost like natural wood lanes wiich is not co,parably better than other synthetic lanes.



  EASY INSTALLATION AND BEAUTIFUL FINISHING
International standardized size of overlay lane panels from approach to pin deck helps the lane installation very easy, fast and perfect. JS International also provide customized size of overlay lane panels planed before manufacturing if in case any bowling center requests for their own special situation.


 FEATURES
7/16"(11.1mm)'s thick of overlay lane penel / Anti-skid pindeck with pin positons on designed pindeck pattern / Surface markings such as release dots and lane arrows / Brilliant edge of the each panel / Installation accessories such as plug, side molding, shim paper etc which help beautiful finishing of the installation and last the good quality


GLOW EFFECT
Distinctive runway designed glow effect makes the whole bowling area as a fatastic entertainment center where your customers can greatly enjoy the bowling with dancing, shouting etc. This runway designed glow effect leads high score and there is no complaint from customers because of the low score even in the glow in dark bowling

Click the below YouTub address to see the Video of JS Vision Glow Bowling Lane  !








JSvision Automatic Scoring System for Bowling




Click the below YouTub Address to see JS Vision Automatic Scoring System for Bowling !

http://www.youtube.com/watch?v=XR7Zmeli2gA&feature=youtu.be
